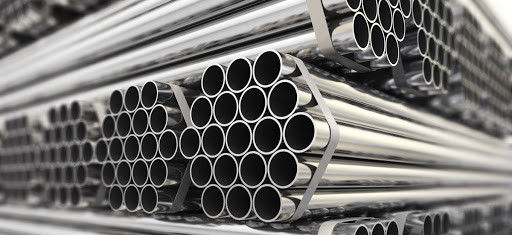

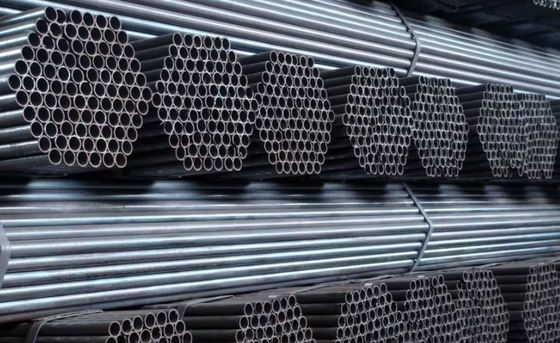

De Buis van het de Boilerstaal van ASTM A213/van ASME SA213 T9 T91 T92
Product Details
| norm: | JIS, AISI, ASTM, GB, DIN, EN | Materiaal: | TP304L |
|---|---|---|---|
| Specificatie: | ASTM A269/de Buis van de het Staalboiler van A269M-15A 38.1X1.59MM/naadloze boilerbuizen/naadloze st | Pakket: | Standaard Zeewaardig Pakket |
| Verwerking: | Het buigen, het Lassen, Decoiling, Ponsen, Knipsel, Afgietsel | vorm: | Ronde |
| Markeren |
De Buis van het de Boilerstaal van ASTM A213,De Buis van het de Boilerstaal van ASME SA213,T92 de Buis van het Boilerstaal |
||
Product Description
Beschrijving
HDT behandelt roestvrij staalnaadloze buis en de buis reeds meer dan 10 jaar, elk jaar verkoopt meer dan 80000 ton van roestvrij staalnaadloze buis en buis. Onze cliënt omvat reeds meer dan 45 landen. Onze die roestvrij staalnaadloze buis en buis waren breedte in Mijnbouw, Energie, de Petrochemische, Chemische Industrie, Voedselinstallatie, Document installatie, Gas en Vloeibare de Industrieenz. ANSI B16.10 wordt gebruikt: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH-JAREN '40, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS
| Buisgrootte voor Warmtewisselaars & Condensatoren & Boiler | |||||||||
| Buitendiameter | BWG | ||||||||
| 25 | 22 | 20 | 18 | 16 | 14 | 12 | 10 | ||
| Muurdikte mm | |||||||||
| 0,508 | 0,71 | 0,89 | 1.24 | 1.65 | 2.11 | 2.77 | 3.40 | ||
| mm | duim | Gewicht kg/m | |||||||
| 6.35 | 1/4 | 0,081 | 0,109 | 0,133 | 0,174 | 0,212 | |||
| 9.53 | 3/8 | 0,126 | 0,157 | 0,193 | 0,257 | 0,356 | 0,429 | ||
| 12.7 | 1/2 | 0,214 | 0,263 | 0,356 | 0,457 | 0,612 | 0,754 | ||
| 15.88 | 5/8 | 0,271 | 0,334 | 0,455 | 0,588 | 0,796 | 0,995 | ||
| 19.05 | 3/4 | 0,327 | 0,405 | 0,553 | 0,729 | 0,895 | 1,236 | ||
| 25.4 | 1 | 0,44 | 0,546 | 0,75 | 0,981 | 1,234 | 1,574 | 2.05 | |
| 31.75 | 1 1/4 | 0,554 | 0,688 | 0,947 | 1,244 | 1,574 | 2,014 | 2,641 | |
| 38.1 | 1 1/2 | 0,667 | 0,832 | 1,144 | 1,514 | 1,904 | 2,454 | 3,233 | |
| 44.5 | 1 3/4 | 1,342 | 1,774 | 2,244 | 2,894 | 3.5 | |||
| 50.8 | 2 | 1,549 | 2,034 | 2,574 | 3,334 | 4.03 | |||
| 63.5 | 2 1/2 | 1,949 | 2,554 | 3,244 | 4,214 | 5.13 | |||
| 76.2 | 3 | 2,345 | 3,084 | 3,914 | 5,094 | 6.19 | |||
| 88.9 | 3 1/2 | 2,729 | 3,609 | 4,584 | 5,974 | 7.27 | |||
| 101.6 | 4 | 4,134 | 5,254 | 6,854 | 8.35 | ||||
| 114.3 | 4 1/2 | 4,654 | 5,924 | 7,734 | 9.43 | ||||
Chemische Samenstelling en Mechanische Eigenschappen
| Rang | Chemisch product Composition% | ||||||||
| C | Si | Mn | P, Maximum S | Cr | Mo | Maximum Ni | V | Al Max | |
| T2 | 0.10~0.20 | 0.10~0.30 | 0.30~0.61 | 0,025 | 0.50~0.81 | 0.44~0.65 | – | – | – |
| T11 | 0.05~0.15 | 0.50~1.00 | 0.30~0.60 | 0,025 | 1.00~1.50 | 0.44~0.65 | – | – | – |
| T12 | 0.05~0.15 | Maximum 0,5 | 0.30~0.61 | 0,025 | 0.80~1.25 | 0.44~0.65 | – | – | – |
| T22 | 0.05~0.15 | Maximum 0,5 | 0.30~0.60 | 0,025 | 1.90~2.60 | 0.87~1.13 | – | – | – |
| T91 | 0.07~0.14 | 0.20~0.50 | 0.30~0.60 | 0,02 | 8.0~9.5 | 0.85~1.05 | 0,4 | 0.18~0.25 | 0,015 |
| T92 | 0.07~0.13 | Maximum 0,5 | 0.30~0.60 | 0,02 | 8.5~9.5 | 0.30~0.60 | 0,4 | 0.15~0.25 | 0,015 |
| Rang | Chemisch product Composition% | Mechanische Eigenschappen | |||||||
| W | B | Nb | N | T.S | Y.P | Verlenging | Hardheid | ||
| T2 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T11 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T12 | – | – | – | – | ≥ 415MPa | ≥ 220MPa | ≥ 30% | 163HBW (85HRB) | |
| T22 | – | – | – | – | ≥ 415MPa | ≥ 205MPa | ≥ 30% | 163HBW (85HRB) | |
| T91 | – | – | 0.06~0.10 | 0.03~0.07 | ≥ 585MPa | ≥ 415MPa | ≥ 20% | 250HBW (25HRB) | |
| T92 | 1.50~2.00 | 0.001~0.006 | 0.04~0.09 | 0.03~0.07 | ≥ 620MPa | ≥ 440MPa | ≥ 20% | 250HBW (25HRB) | |
T2 van ASTM A213/ASME SA213, T11, T12, T22, T91, T92-Tolerantie
| Buitendiameter | OD Tolerantie | GEWICHTStolerantie | Ovalitytolerantie | De Tolerantie van de besnoeiingslengte |
| OD≤ 12, 7 mm | ± 0, 13 mm | ± 15% | – | + 3, 18 mm, – 0 mm |
| 12, 7 mm < OD=""> | ± 0, 13 mm | ± 10% | maximum, 1, 65 mm | + 3, 18 mm, – 0 mm |
| 38, 1 mm < OD=""> | ± 0, 25 mm | ± 10% | maximum, 2, 41 mm | + 4, 76 mm, – 0 mm |
Toepassingsindustrie
- Voor de kust Olie Boorbedrijven
- Machtsgeneratie
- Petrochemische stoffen
- Gasverwerking
- Specialiteitchemische producten
- Geneesmiddelen
- Farmaceutisch Materiaal
- Chemisch Materiaal
- Zeewatermateriaal
- Warmtewisselaars
- Condensatoren
