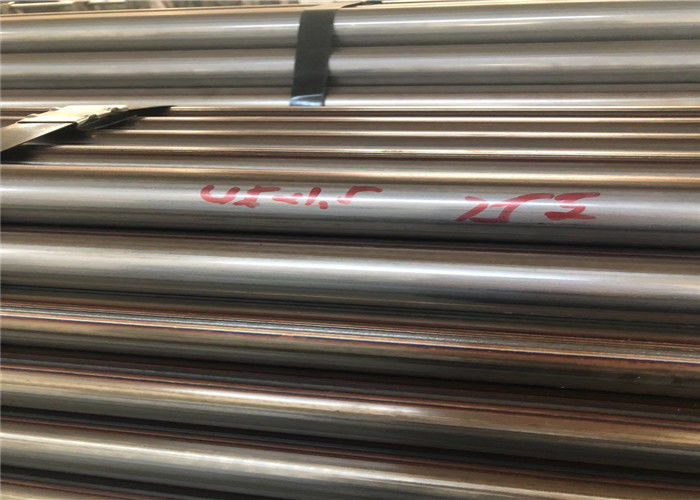

ASTM-Industrie legde 5mm Elektrische Weerstand Gelaste Pijp in
Product Details
| Materiaal: | TP304 TP304L TP316 TP316L | Het eindigen: | Onthard & Ingelegde oplossing |
|---|---|---|---|
| Toepassing: | boiler&heat ruilmiddel, energie, petrochemische stof, mijnbouw, voedsel, document, gas en de vloeiba | Vorm: | Gelaste buis |
| OD: | 15.9mm tot 406.4mm | gewicht: | 0.89mm tot 5mm |
| Markeren |
Ingelegde elektrische weerstand gelaste pijp,5mm Elektrische Weerstand Gelaste Pijp,De gelaste pijp van ASTM erw |
||
Product Description
Productie
| Roestvrij staal Mechanische Eigenschappen | ||||||
| Rang | Treksterkte | Yidesterkte | Elogation | Hardheid |
Oplossing Het ontharden |
|
| kgf/mm ² (N/mm ²) | kgf/mm ² (N/mm ²) | % | HRB (HV) | ℃ | ||
| ASTM | TP 304 | ≥53 (515) | ≥21 (205) | ≥35 | ≤90 (200) |
1040℃-1150℃ Water het Doven |
| TP 304L | ≥50 (485) | ≥17 (170) | ||||
| TP 316 | ≥53 (515) | ≥21 (205) | ||||
| TP 316L | ≥50 (485) | ≥17 (170) | ||||
| JIS | SUS 304 | ≥53 (520) | ≥21 (205) |
1010℃-1150℃ Water het Doven |
||
| SUS 304L | ≥49 (480) | ≥18 (175) | ||||
| SUS 316 | ≥53 (520) | ≥21 (205) | ||||
| SUS 316L | ≥49 (480) | ≥18 (175) | ||||
| GB | 06Cr19Ni10 | ≥53 (520) | ≥21 (210) |
1010℃-1150℃ Water het Doven |
||
| 022Cr19Ni10 | ≥49 (480) | ≥18 (180) | ||||
| 06Cr17Ni12Mo2 | ≥53 (520) | ≥21 (210) | ||||
| 022Cr17Ni12Mo2 | ≥59 (480) | ≥18 (180) | ||||
| EN | 1.4301 | (500-700) | ≥20 (195) | ≥40 |
1000℃-1100℃ Water het Doven |
|
| 1.4307 | (470-670) | ≥18 (180) | ||||
| 1.4401 | (510-710) | ≥21 (205) |
1020℃-1120℃ Water het Doven |
|||
| 1.4404 | (490-690) | ≥19 (195) | ||||
| Grootte OD | Nominale Muur | Buitendiameter | Lengte | Muur |
| 1/2“ (12,7) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 3/4“ (19,1) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 1“ (25,4) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 11/2“ (38,1) | 0,065“ (1,65)/0,049“ (1,25) | +/0,008“ (0,20) | +1/8“ (3,18) - 0 | +/10,0% |
| 2“ (50,8) | 0,065“ (1,65)/0,049“ (1,25) | +/0,008“ (0,20) | +1/8“ (3,18) - 0 | +/10,0% |
| 21/2“ (63,5) | 0,065“ (1,65) | +/0,010“ (0,25) | +1/8“ (3,18) - 0 | +/10,0% |
| 3“ (76,2) | 0,065“ (1,65) | +/0,010“ (0,25) | +1/8“ (3,18) - 0 | +/10,0% |
| 4“ (101,6) | 0,083“ (2,11) | +/0,015“ (0,38) | +1/8“ (3,18) - 0 | +/10,0% |
| 6“ (152,4) | 0,083“ (2,11) | +/0,030“ (0,76) | +1“ (25,4) - 0 | +/10,0% |
| 6“ (152,4) | 0,109“ (2,77) | +/0,030“ (0,76) | +1“ (25,4) - 0 | +/10,0% |
| 8“ (203,2) | 0,109“ (2,77) | +0.061“ (1,55) /0,031“ (0,79) | +1“ (25,4) - 0 | +/10,0% |
Materiële Rang:
| Amerikaanse Norm | TP304, TP304L, TP310S, TP316, TP316L, TP316TI, TP321, TP347, 904L, S31803 ENZ. |
| Europese Norm | 1.4301, 1.4306, 1.4845, 1.4401, 1.4404, 1.4571, 1.4541, 1.4550, 1.4539, 1.4462 Enz. |
| Duitse Norm | X5CrNi18-10, X2CrNi19-11, X12CrNi25-21, x5CrNi17-12-2, x5CrNi17-12-3, x2CrNiMo18-14-3, x6CrNiTi18-10, x6CrNiTb18-10 Enz. |
1 . OD (Buitendiameter): 15.9mm tot 406.4mm
2 . GEWICHT (Muurdikte): 0.89mm tot 5mm
3 . Lengte: Volgens de eis van de klant
4 . Normen: ASTM A312; ASTM A269; ASTM A789; ASTM A790 ect
5 . Procesmethode: ERW, EFW enz.
| Toepassing: | a) Voor vloeistof en gasvervoer |
| b) Structuur en het machinaal bewerken | |
| c) Warmtewisselaarpijpen enz. | |
| Voordelen: | a) De superieure oppervlakte eindigt |
| b) Beter mechanisch bezit | |
| c) Nauwkeurigere afmeting | |
| d) Perfecte inspectiemethode en inspectiemateriaal | |
| Prijspunt: | FOB, CFR, CIF of als onderhandeling |
| Betaling: | T/T, LC of als onderhandeling |
Product Highlights
De industrielas 316 304 Ss van de het Roestvrije staalboiler van de Buisdiameter Prijzen van het de Pijpenbuizenstelsel Productie Roestvrij staal Mechanische Eigenschappen Rang Treksterkte Yidesterkte Elogation Hardheid Oplossing Het ontharden kgf/mm ² (N/mm ²) kgf/mm ² (N/mm ²) % HRB (HV) ℃ ASTM TP ...
