Van het de Boilerroestvrije staal van ASTM A249 TP347 347H de Pijp van Erw/Ss Erw Pijp100% PMI Test
Product Details
| Materiaal: | TP347/347H, 300 Reeksen Roestvrij staal | Het eindigen: | Onthard & Ingelegde oplossing |
|---|---|---|---|
| Toepassing: | boiler&heat ruilmiddel, energie, petrochemische stof, mijnbouw, voedsel, document, gas en de vloeiba | vorm: | Gelaste buis |
| OD: | 5.80mm tot 2032mm | GEWICHT: | 0.25mm tot 28mm |
| Markeren |
roestvrij staal gelaste pijp,duplexroestvrij staalbuis |
||
Product Description

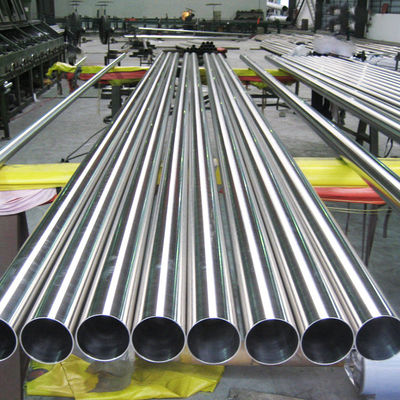

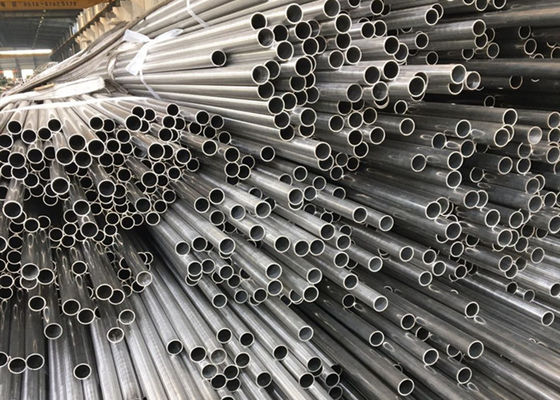

Roestvrije staal van ASTM A249 TP347/van 347H ERW laste Buis voor Boiler, de Test van 100% PMI
De Energietechnologie van Huadong behandelt roestvrij staal gelaste pijp en buis reeds meer dan 10 elke jaar,
het jaar verkoopt meer dan 5000 ton van roestvrij staalpijp en buis. Onze cliënt reeds dekking meer dan 45
landen. Onze die roestvrij staalnaadloze buis en buis waren breedte in Mijnbouw, Energie, Petrochemische stof wordt gebruikt,
De chemische Industrie, Voedselinstallatie, Document installatie, Gas en Vloeibare Industrie enz.
De Norm van ASTM A249:
| Grootte OD | Nominale Muur | Buitendiameter | Lengte | Muur |
| 1/2“ (12,7) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 3/4“ (19,1) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 1“ (25,4) | 0,065“ (1,65)/0,049“ (1,25) | +/0,005 (0,13) | +1/8“ (3,18) - 0 | +/10,0% |
| 11/2“ (38,1) | 0,065“ (1,65)/0,049“ (1,25) | +/0,008“ (0,20) | +1/8“ (3,18) - 0 | +/10,0% |
| 2“ (50,8) | 0,065“ (1,65)/0,049“ (1,25) | +/0,008“ (0,20) | +1/8“ (3,18) - 0 | +/10,0% |
| 21/2“ (63,5) | 0,065“ (1,65) | +/0,010“ (0,25) | +1/8“ (3,18) - 0 | +/10,0% |
| 3“ (76,2) | 0,065“ (1,65) | +/0,010“ (0,25) | +1/8“ (3,18) - 0 | +/10,0% |
| 4“ (101,6) | 0,083“ (2,11) | +/0,015“ (0,38) | +1/8“ (3,18) - 0 | +/10,0% |
| 6“ (152,4) | 0,083“ (2,11) | +/0,030“ (0,76) | +1“ (25,4) - 0 | +/10,0% |
| 6“ (152,4) | 0,109“ (2,77) | +/0,030“ (0,76) | +1“ (25,4) - 0 | +/10,0% |
| 8“ (203,2) | 0,109“ (2,77) | +0.061“ (1,55) /0,031“ (0,79) | +1“ (25,4) - 0 | +/10,0% |
Toepassing:
a) Voor vloeistof en gasvervoer
b) Structuur en het machinaal bewerken
c) Warmtewisselaarpijpen enz.
Chemische Samenstelling
| (Maximum) C | (Maximum) Si | (Maximum) Mn | (Maximum) P | (Maximum) S | Cr | Ni | Mo | Ti | |
| TP304/1.4301 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 18.0-20.0 | 8.0-10.5 | ||
| TP304L/1.4307 | 0,035 | 1.00 | 2.00 | 0,045 | 0,030 | 18.0-20.0 | 8.0-12.0 | ||
| TP304H/1.4948 | 0.04-0.10 | 1.00 | 2.00 | 0,045 | 0,030 | 18.0-20.0 | 8.0-12.0 | ||
| TP316/1.4401 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |
| TP316L/1.4404 | 0,035 | 1.00 | 2.00 | 0,045 | 0,030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | |
| TP316Ti/1.4571 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 | 0.7>5x (C+N) |
| TP321/1.4541 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 17.0-19.0 | 9.0-12.0 | 0.7>5x (C+N) | |
| TP317L/1.4449 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 18.0-20.0 | 11.0-14.0 | 3.0-4.0 | |
| TP347H/1.4912 | 0.04-0.10 | 1.00 | 2.00 | 0,045 | 0,030 | 17.0-19.0 | 9.0-13.0 | ||
| TP309S/1.4833 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 22.0-24.0 | 12.0-15.0 | 0,75 | |
| TP310S/1.4845 | 0,080 | 1.00 | 2.00 | 0,045 | 0,030 | 24.0-26.0 | 19.0-22.0 | 0,75 |
